shardgrpc

README

SHARD_GRPC

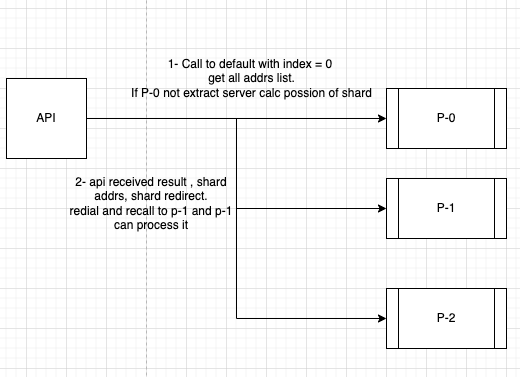

Structure

Required

• Recommend server need using statefulset for easy routing.
• GRPC server need install in big machine(pod/service) for high perfomance.

Install

    go get github.com/teng231/shardgrpc

• Using for client: example

    // for example
    conn, err := grpc.Dial("lhost-0:21240",
        grpc.WithTransportCredentials(insecure.NewCredentials()),
        grpc.WithUnaryInterceptor(UnaryClientInterceptor(
            &DialConfig{ThrottlingDuration: 10 * time.Millisecond, MaxRetryConnect: 3},
            grpc.WithTransportCredentials(insecure.NewCredentials()),
        )))
    if err != nil {
        panic(err)
    }
    client := pb.NewVistorServiceClient(conn)

send request in process

    // ...
    var header metadata.MD // variable to store header and trailer
    c, cancel := MakeContext(20, nil)
    defer cancel()
    c = metadata.AppendToOutgoingContext(c, "s_key", "teng")
    resp, err := client.ListVisitors(c, &pb.VisitorRequest{AccountId: "teng"}, grpc.Header(&header))
    // log.Print("header", header)
    log.Print(resp, err, header)
    if err != nil {
        log.Print(err)
    }

• Using for server: example

    func (me TestShardApiServer) ServeV1(hostname, port string, shardcount int) {
        lis, err := net.Listen("tcp", hostname+":"+port)
        if err != nil {
            panic(err)
        }
        opts := []grpc.ServerOption{
            grpc.KeepaliveParams(keepalive.ServerParameters{
                MaxConnectionAge: 30 * time.Second,
            }),
            grpc.UnaryInterceptor(
                UnaryServerInterceptorStatefullset(hostname, port, "", shardcount),
            ),
        }
        grpcServer := grpc.NewServer(opts...)
        pb.RegisterVistorServiceServer(grpcServer, &me)
        grpcServer.Serve(lis)
    }

REFERENCES:

Intercepter Structure https://github.com/ori-edge/grpc-interceptor-demo/blob/fd821c3556ff6eebd6eab1a617df0fb68f7c01a2/pkg/interceptor/interceptor.go

Structure of shard service https://www.notion.so/Shard-service-c002bcb0b00c47669bce547be646cd9f

structure example https://medium0.com/m/global-identity?redirectUrl=https%3A%2F%2Fedgehog.blog%2Fa-guide-to-grpc-and-interceptors-265c306d3773

Documentation

Index

• Constants
• func GetClientShardKey(ctx context.Context, message interface{}) string
• func GetShardIndex(hostname string) int
• func UnaryClientInterceptor(dialConfig *DialConfig, dialOpts ...grpc.DialOption) grpc.UnaryClientInterceptor
• func UnaryServerInterceptor(addrs []string, id int) grpc.UnaryServerInterceptor
• func UnaryServerInterceptorPreset(servers []*ServerInfo, currentAddr string) grpc.UnaryServerInterceptor
• func UnaryServerInterceptorStatefullset(hostname, port, serviceDomain string, totalShard int) grpc.UnaryServerInterceptor
• type Client
  • func CreateShardClient() *Client
  • func (s *Client) CalcShardIndexByKey(key string) int
  • func (s *Client) GetAddrs() []string
  • func (s *Client) GetShardCount() int
  • func (s *Client) UnaryClientInterceptor(dialConfig *DialConfig, dialOpts ...grpc.DialOption) grpc.UnaryClientInterceptor
• type DialConfig
• type IClient
• type ServerInfo

Constants

const (
	MAX_BACKOFF = 3
)

const (
	TransportError = "transport: error while dialing"
)

Functions

func GetClientShardKey

func GetClientShardKey(ctx context.Context, message interface{}) string

func GetShardIndex

func GetShardIndex(hostname string) int

func UnaryClientInterceptor

func UnaryClientInterceptor(dialConfig *DialConfig, dialOpts ...grpc.DialOption) grpc.UnaryClientInterceptor

UnaryClientInterceptor is called on every request from a client to a unary server operation, here, we grab the operating system of the client and add it to the metadata within the context of the request so that it can be received by the server

func UnaryServerInterceptor

func UnaryServerInterceptor(addrs []string, id int) grpc.UnaryServerInterceptor

UnaryServerInterceptor is called on every request received from a client to a unary server operation, here, we pull out the client operating system from the metadata, and inspect the context to receive the IP address that the request was received from. We then modify the EdgeLocation type to include this information for every request

func UnaryServerInterceptorPreset

func UnaryServerInterceptorPreset(servers []*ServerInfo, currentAddr string) grpc.UnaryServerInterceptor

UnaryServerInterceptorPreset is called on every request received from a client to a unary server operation, here, we pull out the client operating system from the metadata, and inspect the context to receive the IP address that the request was received from. We then modify the EdgeLocation type to include this information for every request normal case servers like [{host: localhost, port: 8001},{host: localhost, port: 8002}]

func UnaryServerInterceptorStatefullset

func UnaryServerInterceptorStatefullset(hostname, port, serviceDomain string, totalShard int) grpc.UnaryServerInterceptor

UnaryServerInterceptorStatefullset is called on every request received from a client to a unary server operation, here, we pull out the client operating system from the metadata, and inspect the context to receive the IP address that the request was received from. We then modify the EdgeLocation type to include this information for every request in statefull pod-name hostname like: web-0:3456, web-1:3456, ... web-i:3456 serviceDomain like a12.staging.svc.cluster.local

Types

type Client

type Client struct {
	// contains filtered or unexported fields
}

func CreateShardClient

func CreateShardClient() *Client

func (*Client) CalcShardIndexByKey

func (s *Client) CalcShardIndexByKey(key string) int

func (*Client) GetAddrs

func (s *Client) GetAddrs() []string

func (*Client) GetShardCount

func (s *Client) GetShardCount() int

func (*Client) UnaryClientInterceptor

func (s *Client) UnaryClientInterceptor(dialConfig *DialConfig, dialOpts ...grpc.DialOption) grpc.UnaryClientInterceptor

UnaryClientInterceptor is called on every request from a client to a unary server operation, here, we grab the operating system of the client and add it to the metadata within the context of the request so that it can be received by the server

type DialConfig

type DialConfig struct {
	MaxRetryConnect    int
	ThrottlingDuration time.Duration
	DefaultDNS         string
}

type IClient

type IClient interface {
	UnaryClientInterceptor(dialConfig *DialConfig, dialOpts ...grpc.DialOption) grpc.UnaryClientInterceptor
	GetShardCount() int
	GetAddrs() []string
	CalcShardIndexByKey(key string) int
}

type ServerInfo

type ServerInfo struct {
	Host string
	Port int
}
